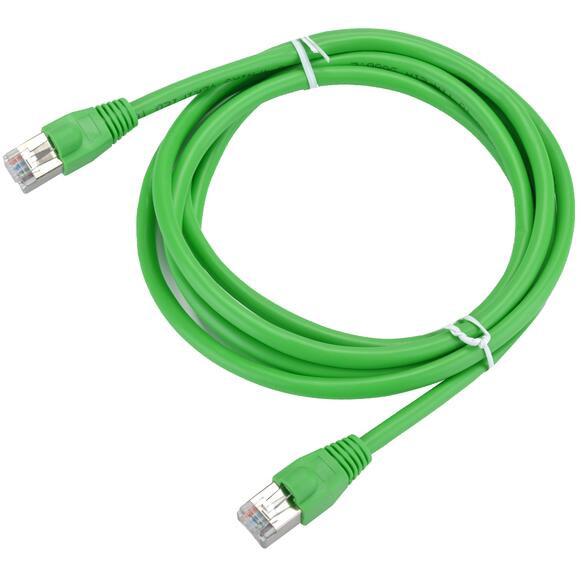

Outdoor Cat5e Shielded Ethernet Cable

Outdoor Cat5e Shielded Ethernet Cable is a carefully built shielded Ethernet cable designed for outdoor environments, and compared to CAT6 Ethernet Cable, it is not only affordable, but also excellent performance. The Cat5E Cable uses an advanced shield design to effectively isolate external electromagnetic interference and resist the impact of bad weather to ensure stable and reliable data transmission. The Outdoor CAT5E Ethernet Cable provides a stable and high-speed network connection, whether in a garden, patio, or any other outdoor location, making it a great choice to connect network devices and extend network coverage. Compared with other network cables, Cat5E cable has won the favor and trust of the majority of users by virtue of its excellent economy and practicality.

Outdoor Cat5e Shielded Ethernet Cable is a specialized type of cable designed for outdoor networking applications that require reliable and high-speed data transmission.

Physical Characteristics

• Construction: It consists of four pairs of twisted copper wires, similar to standard Cat5e cables. However, it has additional shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). The shielding is usually made of a metallic material, such as aluminum foil or braided copper, which surrounds the twisted pairs. The cable is encased in a durable outer sheath that is designed to withstand the elements. The outer sheath is typically made of a UV-resistant and waterproof material, such as polyethylene (PE) or polyvinyl chloride (PVC), to protect the inner wires from moisture, sunlight, and other environmental factors.
• Connector Type: Usually, Outdoor Cat5e Shielded Ethernet Cables have RJ45 connectors at both ends, which are designed to fit into Ethernet ports on devices such as routers, switches, and network cameras. The connectors are often sealed or have a protective cover to prevent water and dust from entering.
• Color Coding: The wires inside the cable are color-coded according to the T568A or T568B standard, which is the same as for indoor Cat5e cables. The standard color codes for the four pairs are white/orange and orange, white/green and green, white/blue and blue, white/brown and brown.

Performance and Applications

• Data Transmission Speed: It is capable of supporting data transfer speeds of up to 1 Gbps, which is sufficient for most outdoor networking applications, such as connecting outdoor access points, security cameras, and outdoor wireless bridges.
• Bandwidth: The cable has a bandwidth of up to 350 MHz, allowing for efficient and reliable data transmission over long distances.
• Weather Resistance: The UV-resistant and waterproof outer sheath makes the cable suitable for outdoor use in various weather conditions. It can withstand rain, snow, extreme temperatures, and sunlight exposure without significant degradation in performance.
• EMI and RFI Protection: The additional shielding provides excellent protection against electromagnetic and radio frequency interference, which is especially important in outdoor environments where there may be other electrical equipment or wireless signals.
• Distance Limitations: Similar to indoor Cat5e cables, the maximum recommended length for an Outdoor Cat5e Shielded Ethernet Cable is 100 meters. However, in some cases, the actual distance may be limited by factors such as signal attenuation and interference.

Product name	AWG	Conductor construction (mm)	Conductor material	Jacket	Insulation	Outer diameter (mm)	Conductor resistance at 20°C (Ω/KM,≤)	Length
CAT5E SFTP	24AWG	7/0.20BC	OFC/CCA	PVC/LSZH	HDPE	6.2	84.2	1-30m
CAT5E SFTP	26AWG	7/0.16BC	OFC/CCA	PVC/LSZH	HDPE	6.0	135	1-30m
CAT5E SFTP	28AWG	7/0.12BC	OFC/CCA	PVC/LSZH	HDPE	5.2	214	1-30m

Applications: Computer, Router, TV, Interchanger, Concentrator, ADSL, Set-top box And So on.
