Network Cables SFTP Cat7 Cable Pass Fluke

1. Definition

A Category 7 (Cat7) cable, also known as a Class F cable, is a type of high – performance network cable. It is designed for high – speed Ethernet networking applications and is used to transmit data between different network devices such as computers, routers, switches, and servers.

2. Physical Characteristics

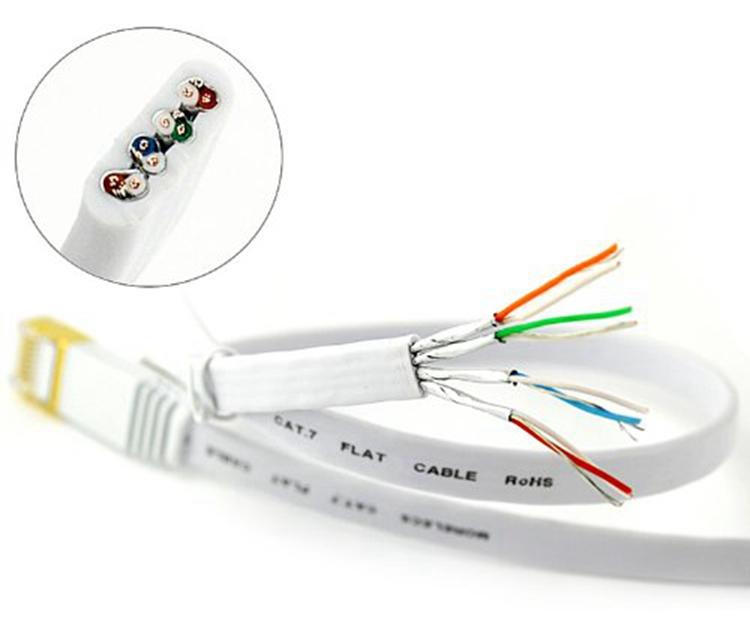

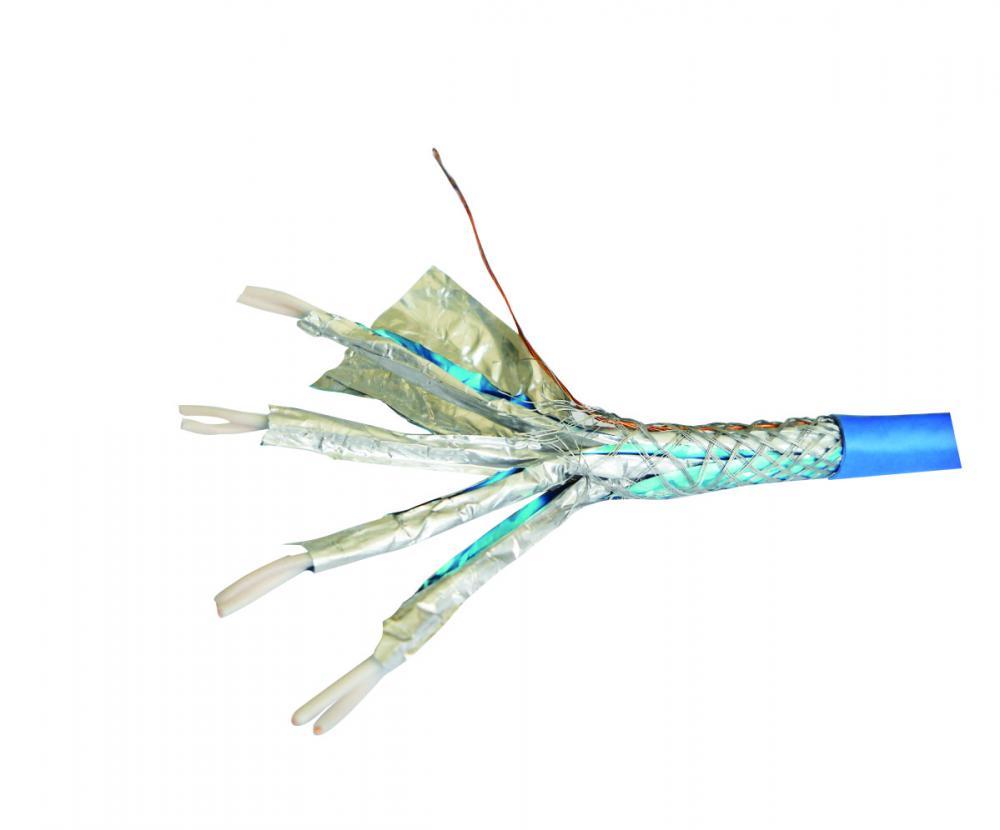

• Construction: Cat7 cables typically consist of four pairs of copper wires. These wires are individually insulated and then twisted together in a specific pattern. The twisting helps to reduce electromagnetic interference (EMI) and crosstalk. The cable is usually surrounded by a shielding layer, which can be either a foil shield or a braided shield. The shielding provides an extra layer of protection against external EMI, which is crucial for maintaining signal integrity in high – speed data transmission.
• Connectors: They usually use RJ – 45 connectors, which are the standard connectors for Ethernet cables. However, the performance of Cat7 cables can be enhanced further with specialized connectors that are designed to provide better impedance matching and reduce signal loss.

3. Performance Specifications

• Bandwidth: Cat7 cables are capable of supporting bandwidths up to 600 MHz. This high bandwidth allows for very fast data transfer rates, making them suitable for applications such as 10 – Gigabit Ethernet (10GbE) and even higher – speed future – proof networking technologies.
• Data Transfer Speed: They can handle data transfer speeds of up to 10 Gbps (gigabits per second) over distances of up to 100 meters. This makes them ideal for use in local area networks (LANs) where high – speed data communication between devices is essential, such as in office buildings, data centers, and home networks that require high – definition video streaming, online gaming, or large – file transfers.

4. Applications

Home Entertainment Systems: For home users, Cat7 cables can be used to connect smart TVs, media players, and gaming consoles to a home network router. This allows for seamless streaming of high – definition video content and online gaming with minimal lag.

Data Centers: In data centers, Cat7 cables are used to connect servers, storage devices, and networking equipment. The high – speed and reliable data transmission they provide is crucial for the efficient operation of data – intensive applications and cloud – computing services.

Office Networks: They are used to wire office buildings, enabling fast and reliable communication between computers, printers, and other network – enabled devices. This helps to improve productivity as employees can quickly access shared resources and communicate with each other without delays caused by slow network connections.
