26AWG Heavy-Duty Cat7 Networking Cord Patch Cable

1. Introduction

A 26AWG (American Wire Gauge) Cat7 (Category 7) Network Cable is a specialized type of cable used in high – speed data networking. The “26AWG” refers to the wire gauge, which indicates the diameter of the conductive wire inside the cable. The smaller the AWG number, the thicker the wire. A 26AWG wire is relatively thin.

2. Physical Structure

• Wire Core: The cable contains four pairs of 26AWG copper wires. Each pair is twisted together. The twisting of these pairs serves a crucial purpose. It helps to reduce crosstalk, which is the interference between adjacent wire pairs caused by electromagnetic fields. For example, if the wires were not twisted, the signal in one wire could disrupt the signal in an adjacent wire, leading to data errors.
• Shielding: Cat7 cables, including the 26AWG variant, usually have shielding. This can be in the form of a foil shield that wraps around the wire pairs and/or a braided shield on the outside. The shielding provides excellent protection against external electromagnetic interference (EMI). For instance, in an environment with a lot of electrical equipment such as motors or fluorescent lights, the shielding prevents the EMI from these sources from affecting the data signals traveling through the cable.

3. Connectors

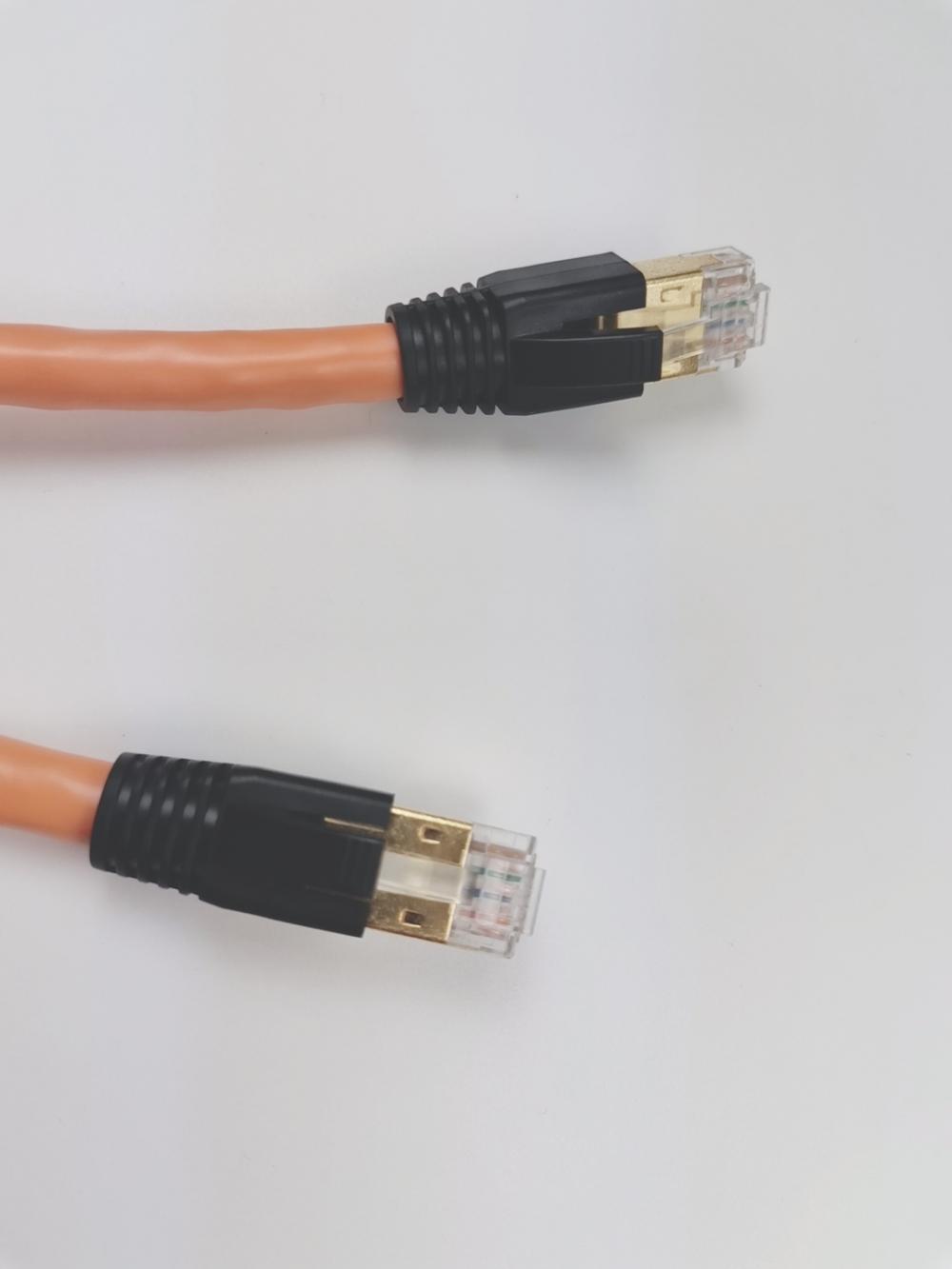

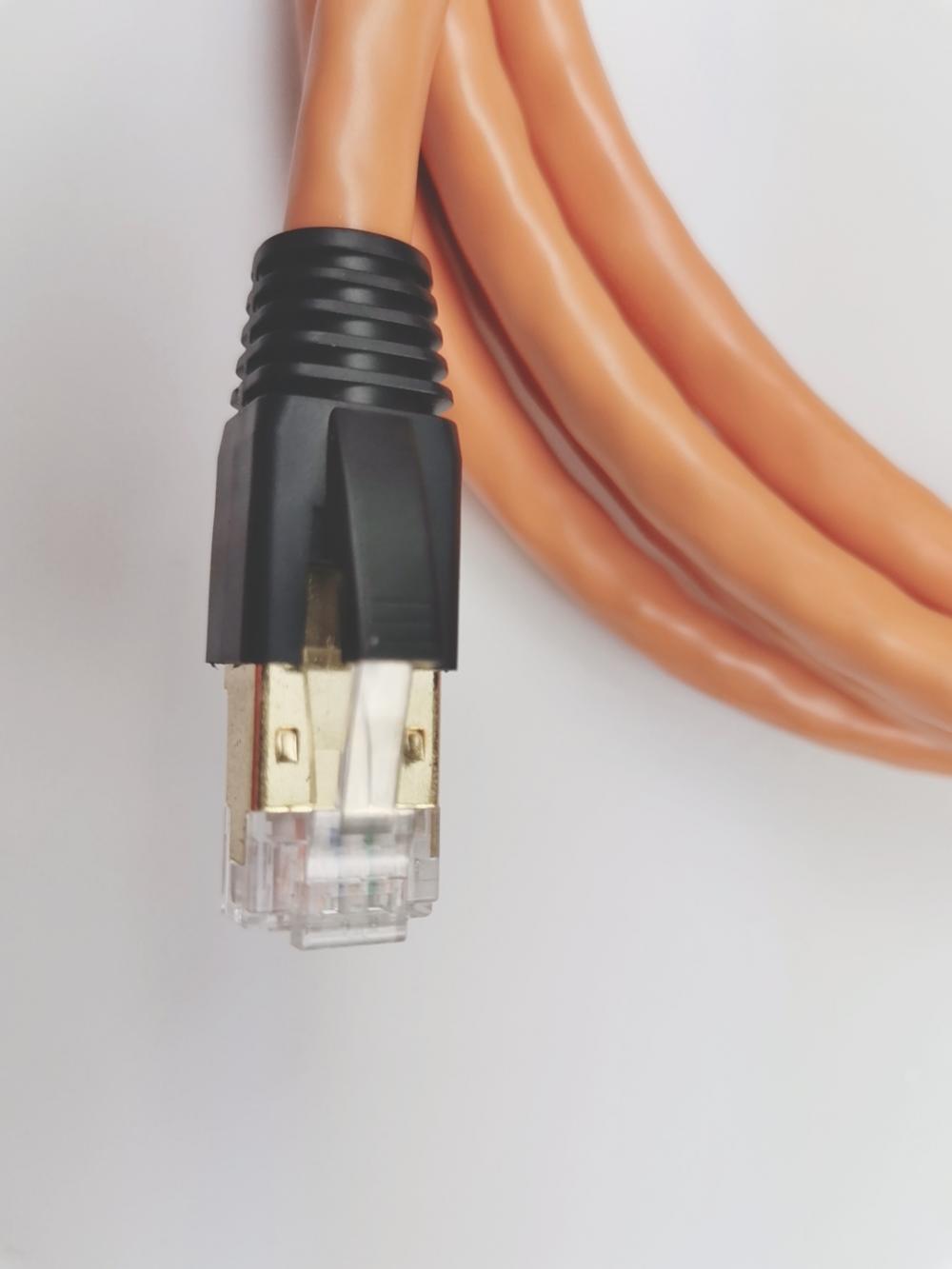

It commonly uses RJ – 45 connectors. The RJ – 45 connectors have eight pins and are designed to mate with the corresponding ports on networking devices such as routers, switches, and network interface cards (NICs). The precise fit of the connector to the cable and the device port is essential to ensure a reliable electrical connection and optimal data transmission.

4. Performance

• Bandwidth: The 26AWG Cat7 cable is designed to support a high bandwidth, typically up to 600 MHz. This high bandwidth allows for the transmission of large amounts of data at high speeds. It can easily handle multiple data streams simultaneously, such as video, audio, and other file – based data.
• Data Rate: It is capable of supporting data transfer rates up to 10 Gbps (gigabits per second). This means it can quickly move data over a network, making it suitable for applications like high – definition video streaming, online gaming, and large – scale data backups. The cable can maintain this high – speed performance over a reasonable distance, usually up to 100 meters for Ethernet applications.

5. Applications

• Home Networks: In a home setting, it can be used to connect smart TVs, gaming consoles, and computers to a router. This enables seamless streaming of 4K or even 8K high – definition videos without buffering issues and provides a lag – free online gaming experience.
• Office Environments: In offices, it is used to wire workstations to switches and routers. It allows for fast file sharing, video conferencing, and access to cloud – based services. The high – speed and reliable data transmission supported by the 26AWG Cat7 cable enhance overall office productivity.
• Small – Scale Data Centers: Even in small – scale data centers, it can be used to connect servers and storage devices. Although larger data centers might use other cable types depending on specific requirements, the 26AWG Cat7 cable can provide a cost – effective solution for smaller setups where high – speed connectivity is still essential.

6. Advantages and Considerations

Installation Precision: Due to its shielding and high – performance nature, proper installation is crucial. Incorrect grounding of the shield or improper termination of the connectors can lead to performance issues.

Advantages

High – Speed Connectivity: Its ability to support high data rates and bandwidth makes it a top choice for modern networking applications that demand fast and reliable data transfer.

Interference Resistance: The shielding and twisted – wire construction make it highly resistant to EMI and crosstalk, ensuring a clean and accurate data signal.

Flexibility: The relatively thin 26AWG wire allows for more flexibility in cable routing. It can be more easily bent and installed in tight spaces compared to cables with thicker wires.

Considerations

Distance Limitations: While it can support up to 100 meters for 10GbE applications, for longer distances, signal degradation might occur. In such cases, other solutions like fiber – optic cables or repeaters might be needed.
