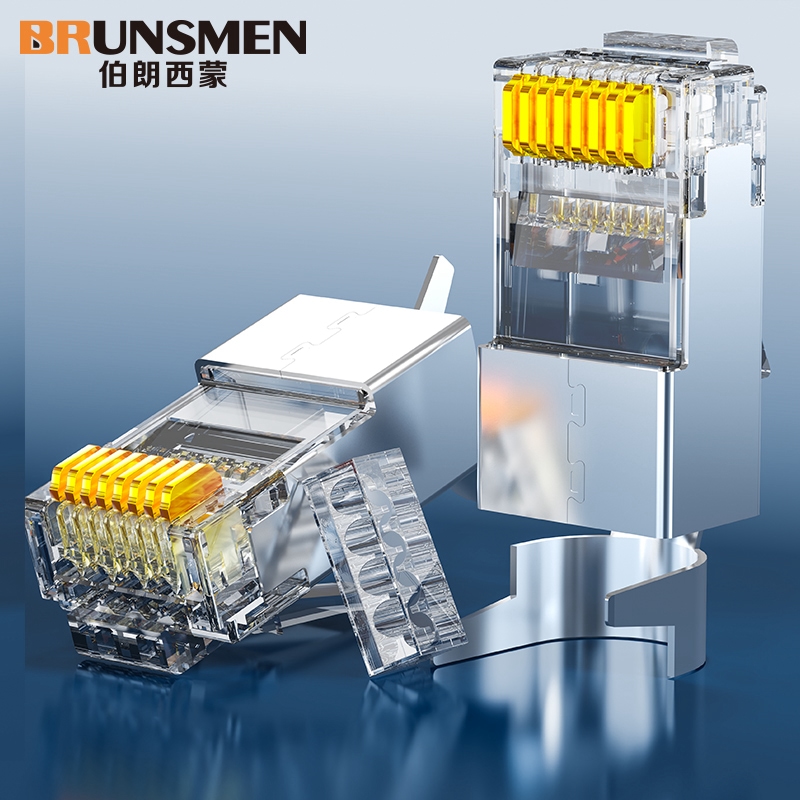

Cat7 Shielded RJ45 Connector

The Cat7 Shielded RJ45 Connector is a high-performance networking component designed to provide reliable and efficient data transmission in advanced network systems. It is an essential part for establishing connections between network devices and cables, ensuring seamless communication in various networking environments.

Key Features

1. Cat7 Standard Compliance: The connector complies with the Category 7 standard, which is capable of supporting extremely high data transfer rates. It offers a bandwidth of up to 600 MHz, enabling it to handle data speeds of 10 Gbps or more. This makes it suitable for applications that require high-speed and high-capacity data transmission, such as large-scale data centers, high-definition video conferencing, and advanced network storage systems.

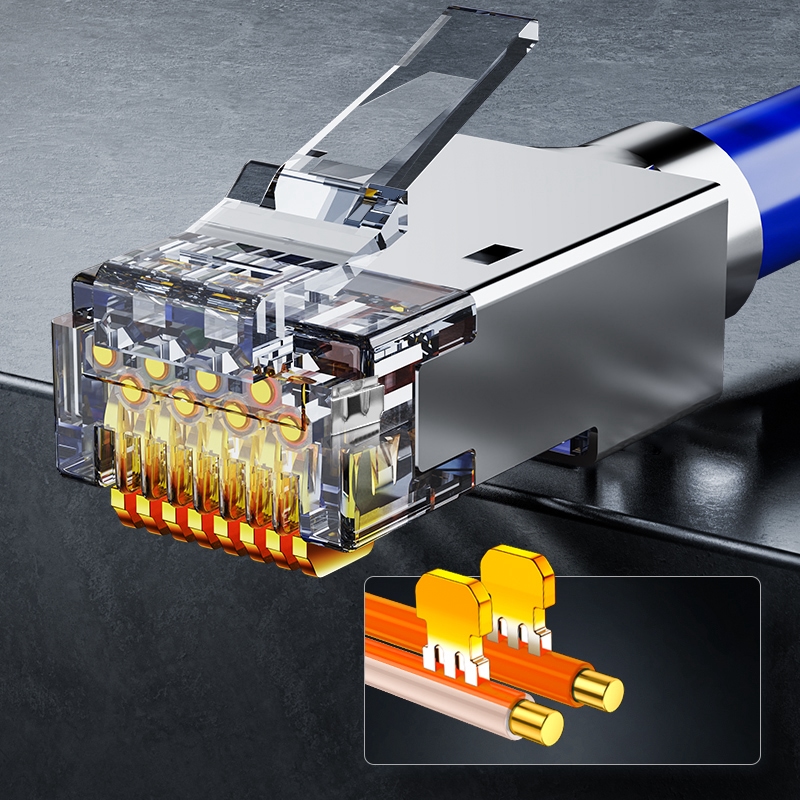

2. Shielded Design: It features a robust shielded construction. The shielding is typically made of high-quality materials like metal foil or braided wire, which helps to prevent electromagnetic interference (EMI) and radio frequency interference (RFI). This ensures that the data signals transmitted through the connector remain clear and stable, with minimal crosstalk and signal distortion, even in environments with a high level of electromagnetic noise.
3. Superior Signal Integrity: The Cat7 Shielded RJ45 Connector is engineered to maintain excellent signal quality. It has precise internal wiring and contact arrangements that are designed to minimize impedance mismatch and signal reflection. This results in a more efficient and accurate data transfer, reducing the occurrence of errors and improving the overall performance of the network connection.
4. Durable Build Quality: Constructed with durability in mind, the connector is made from high-quality plastics and metal components. The plastic housing is often reinforced to withstand physical stress and wear, while the metal contacts are designed to have a long lifespan, providing reliable connections over an extended period. It can endure frequent plugging and unplugging without losing its performance or causing connection issues.

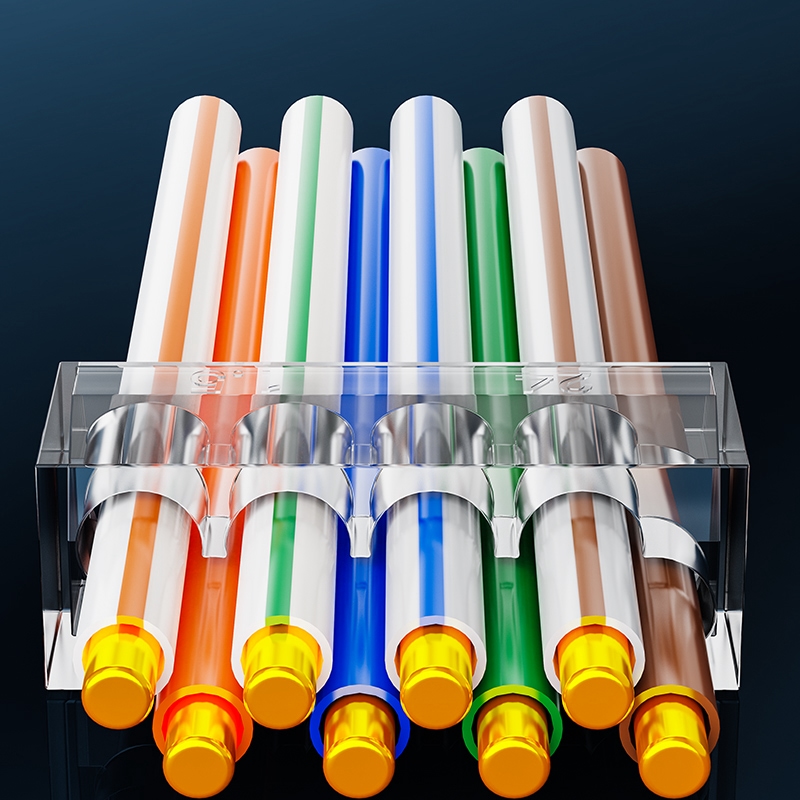

5. Easy Installation: The connector is designed for easy installation and termination. It usually comes with a user-friendly design that allows for straightforward cable insertion and locking. Some models may have color-coded or labeled terminals to assist in proper wire connection, making it accessible for both professional installers and DIY enthusiasts. The installation process is efficient, reducing the time and effort required to set up network connections.
6. Universal Compatibility: The Cat7 Shielded RJ45 Connector is widely compatible with a variety of network devices and Cat7 Ethernet cables. It can be used with computers, servers, routers, switches, and other networking equipment that support RJ45 connections. This universality makes it a versatile choice for different network setups, allowing for seamless integration into existing or new network infrastructures.

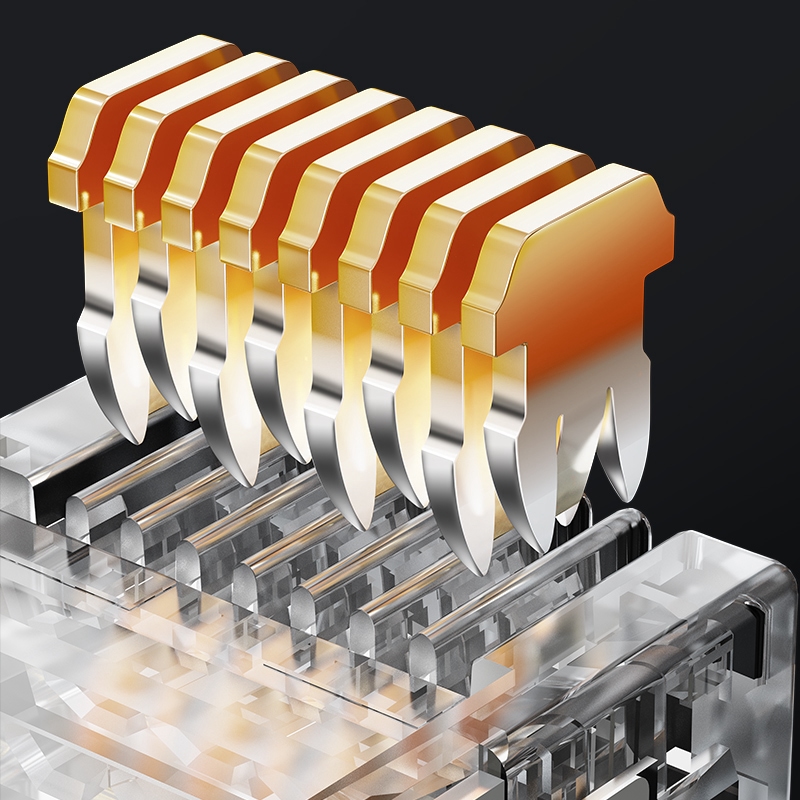

7. High-Quality Contacts: The internal contacts of the connector are made of high-conductivity materials, such as phosphor bronze or gold-plated copper. These materials offer excellent electrical conductivity, ensuring low resistance and reliable signal transmission. The gold plating, in particular, helps to prevent corrosion and oxidation, further enhancing the longevity and performance of the connector.

Applications

1. Enterprise Networks: In large enterprise environments, where there is a high demand for fast and reliable data transfer, the Cat7 Shielded RJ45 Connector is crucial. It is used to connect servers, workstations, and network switches in corporate offices, enabling seamless communication for tasks such as data sharing, video conferencing, and running business-critical applications.
2. Data Centers: Data centers rely on high-speed and stable network connections to manage and transfer vast amounts of data. The Cat7 Shielded RJ45 Connector is extensively used in data centers to connect servers, storage devices, and networking equipment. Its high bandwidth and low interference characteristics ensure efficient data processing and transmission, supporting the smooth operation of cloud computing, big data storage, and other data-intensive applications.
3. Gaming and Entertainment Systems: For gamers and entertainment enthusiasts, the Cat7 Shielded RJ45 Connector offers the advantage of low-latency and high-speed data transmission. It can be used to connect gaming consoles, high-definition TVs, and audio-visual equipment to the network, providing a seamless online gaming experience and enabling the streaming of high-definition video and audio content without buffering or distortion.
4. Home Automation and Smart Homes: In smart home applications, the connector can be used to establish connections between various smart devices, such as security cameras, smart thermostats, lighting systems, and home control hubs. It ensures reliable and fast communication between these devices, allowing homeowners to control and manage their smart home systems effectively.
5. Educational and Research Institutions: Schools, colleges, and research institutions often require high-performance network connections for teaching, research, and data analysis. The Cat7 Shielded RJ45 Connector is used to connect computers in laboratories, classrooms, and research facilities to the network, enabling students and researchers to access online resources, collaborate on projects, and conduct experiments that involve large amounts of data transfer.
