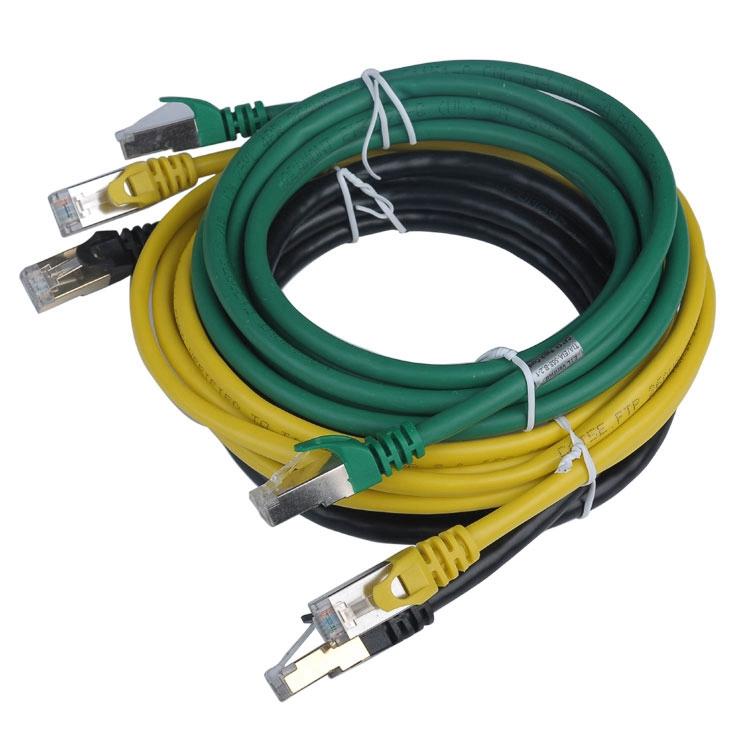

Cat7 SFTP Outdoor Lan Patch Cord Cable

1. Introduction

A Cat7 SFTP (Shielded Foil Twisted Pair) Outdoor Patch Cord is a specialized cable designed for outdoor use in high – speed network connections. It belongs to the Category 7 cable family, known for its excellent performance in data transmission.

2. Physical Construction

• Core Structure
  • It contains four pairs of copper wires. Each pair is tightly twisted together. The twisting of the wires helps to reduce crosstalk, which is the unwanted interference between adjacent wire pairs. For example, when data is transmitted through one wire pair, the electromagnetic field generated can potentially affect the adjacent pairs. The twisting minimizes this interference and ensures a more stable and accurate data signal.
  • The wires are usually made of high – quality copper to provide good conductivity for efficient data transfer. Copper is a preferred material due to its excellent electrical properties that allow for the smooth flow of electrical signals, which in turn carry the data.
• Shielding
  • The SFTP feature means it has a combination of shielding. There is a foil shielding that wraps around each individual wire pair. This foil acts as a first line of defense against electromagnetic interference (EMI). Additionally, there is a braided shield that covers the entire cable core. The braided shield provides an extra layer of protection, especially against external EMI sources such as radio frequencies and other electrical equipment in the vicinity. This dual – shielding system makes it highly resistant to interference and is crucial for maintaining the integrity of the high – speed data signals that Cat7 cables are designed to carry.
• Outer Jacket
  • The cable has a durable outer jacket. This jacket is specifically designed to withstand outdoor conditions. It is usually made of a weather – resistant material such as UV – stabilized polyethylene or a similar material. The UV – stabilization is essential as it protects the cable from the harmful effects of sunlight. Without this protection, the cable’s outer layer could become brittle and crack over time, exposing the inner components to damage. The outer jacket also provides protection against moisture, dirt, and other physical elements that the cable may encounter outdoors.

3. Connectors

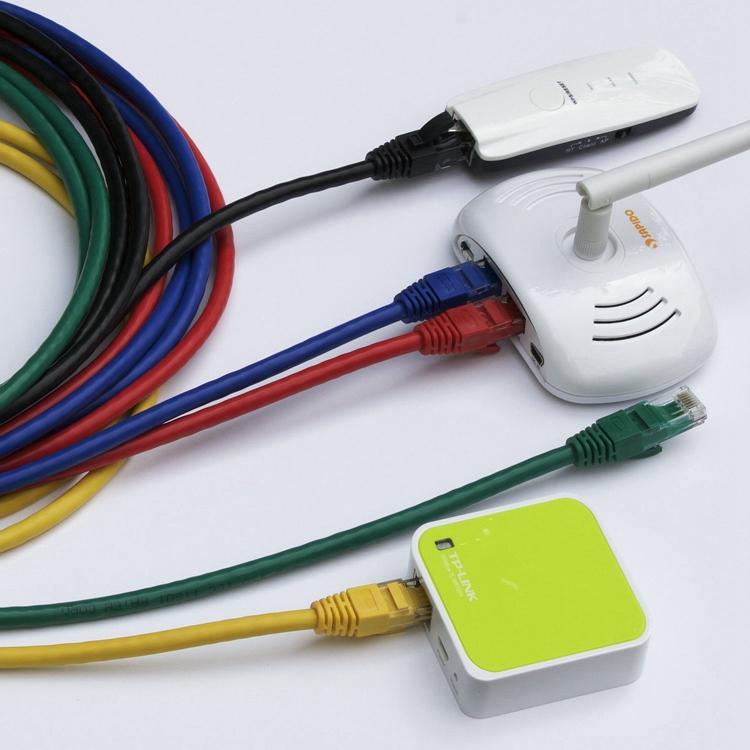

• The Cat7 Outdoor Patch Cord typically uses RJ – 45 connectors. These connectors are designed to fit snugly into the corresponding ports on networking devices such as routers, switches, and network interface cards. The RJ – 45 connectors have eight pins and are standardized for Ethernet connections. The quality of the connectors is important as they need to provide a reliable electrical connection. The connectors are usually gold – plated to reduce resistance and ensure good conductivity, which is essential for high – speed data transmission.

4. Performance Specifications

• Bandwidth and Data Rate
  • It offers a high bandwidth of up to 600 MHz. This high bandwidth allows for the transmission of large amounts of data at a very high speed. It is capable of supporting data transfer rates of up to 10 Gbps (gigabits per second). This makes it suitable for applications such as high – definition video streaming, online gaming, and other data – intensive tasks that require a fast and reliable network connection.
• Distance
  • For outdoor applications, it can cover reasonable distances while maintaining signal quality. It can generally transmit data effectively over distances of up to 100 meters for Ethernet – based applications. However, the actual distance may vary depending on factors such as the environment and the presence of any interference sources.

5. Applications

In industrial settings such as factories or power plants, it can be used to connect outdoor sensors and control devices to the main industrial network. The cable’s ability to withstand outdoor conditions and provide reliable data transmission helps in the efficient operation of the industrial processes that rely on these network – connected devices.

Outdoor Wi – Fi Networks

It is commonly used to connect outdoor Wi – Fi access points to the main network infrastructure. For example, in a large campus or a public park, these patch cords can be used to connect access points mounted on poles or buildings to the wired network inside. This enables the provision of reliable Wi – Fi coverage over a wide outdoor area.

Security Camera Systems

In outdoor security camera installations, the Cat7 SFTP Outdoor Patch Cord is used to connect cameras to the network video recorders (NVRs) or the central monitoring system. The high – speed and interference – resistant properties of the cable ensure that the video data from the cameras is transmitted clearly and without loss or distortion. This is crucial for security applications where accurate video surveillance is required.

Industrial Outdoor Networking
