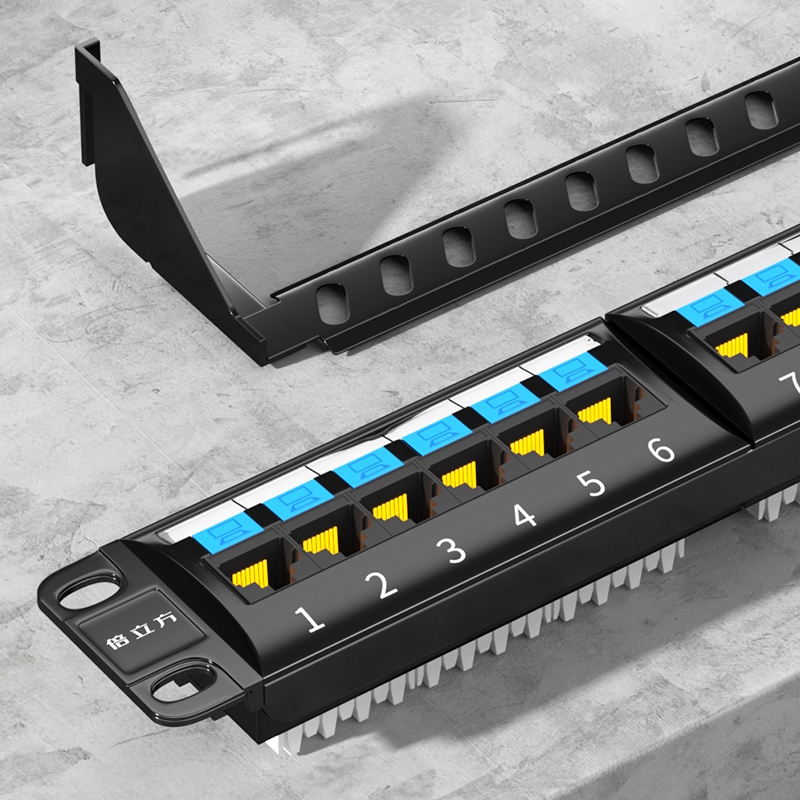

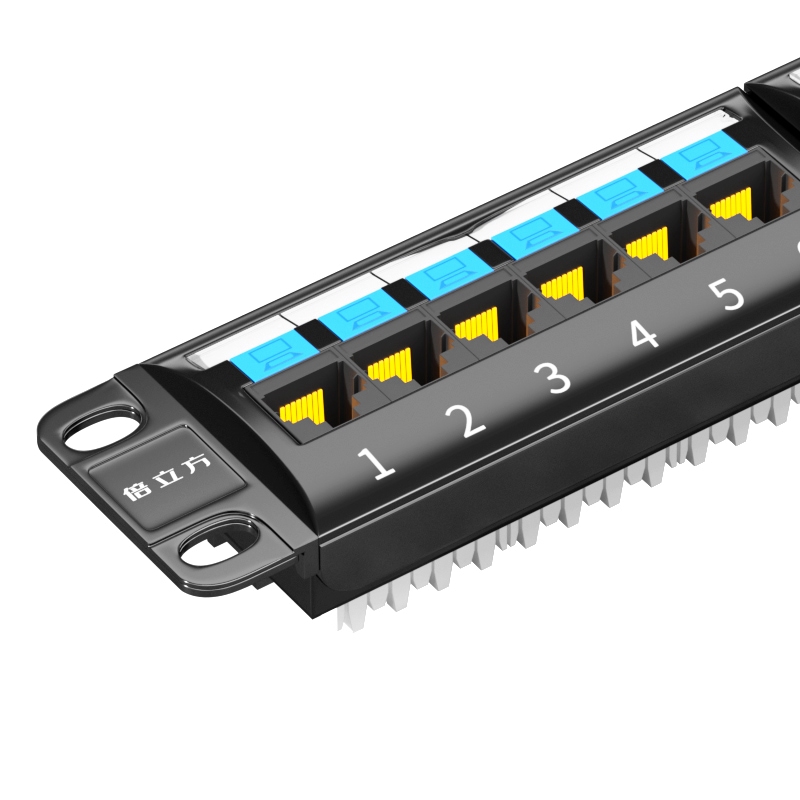

Cat6 Engineering Grade Patch Panel

Category:Structured Cabling

Enhanced Conductivity

Pure copper conductors enhance signal strength and transmission speed.

Eco-Friendly

ROHS compliant jacket ensures environmental sustainability and durability.

Quality Assurance

Rigorous Fluke testing ensures network cables’ superior quality and reliability.

High-Speed Capability

Our cables are designed for high-speed, reliable data transmission.

Performance Optimization

Ensures low signal loss and high performance across all network cables.

General Introduction

The Cat6 Engineering Grade Patch Panel is a vital component in structured cabling systems, designed to provide a centralized and organized connection point for Cat6 Ethernet cables. It is widely used in various engineering and networking applications to manage and distribute network connections efficiently.

Key Features

  1. High-Quality Construction: Engineered with precision, this patch panel is made from top-grade materials to ensure durability and reliability. The panel itself is typically constructed from sturdy metal or high-strength plastic, capable of withstanding the rigors of daily use and the demands of a professional networking environment.
  2. Cat6 Compatibility: Specifically designed for Cat6 cables, it offers full compatibility with the Category 6 Ethernet standard. This allows for high-speed data transmission with a bandwidth of up to 250 MHz, enabling efficient transfer of large amounts of data, such as in applications like video streaming, online gaming, and high-definition video conferencing.

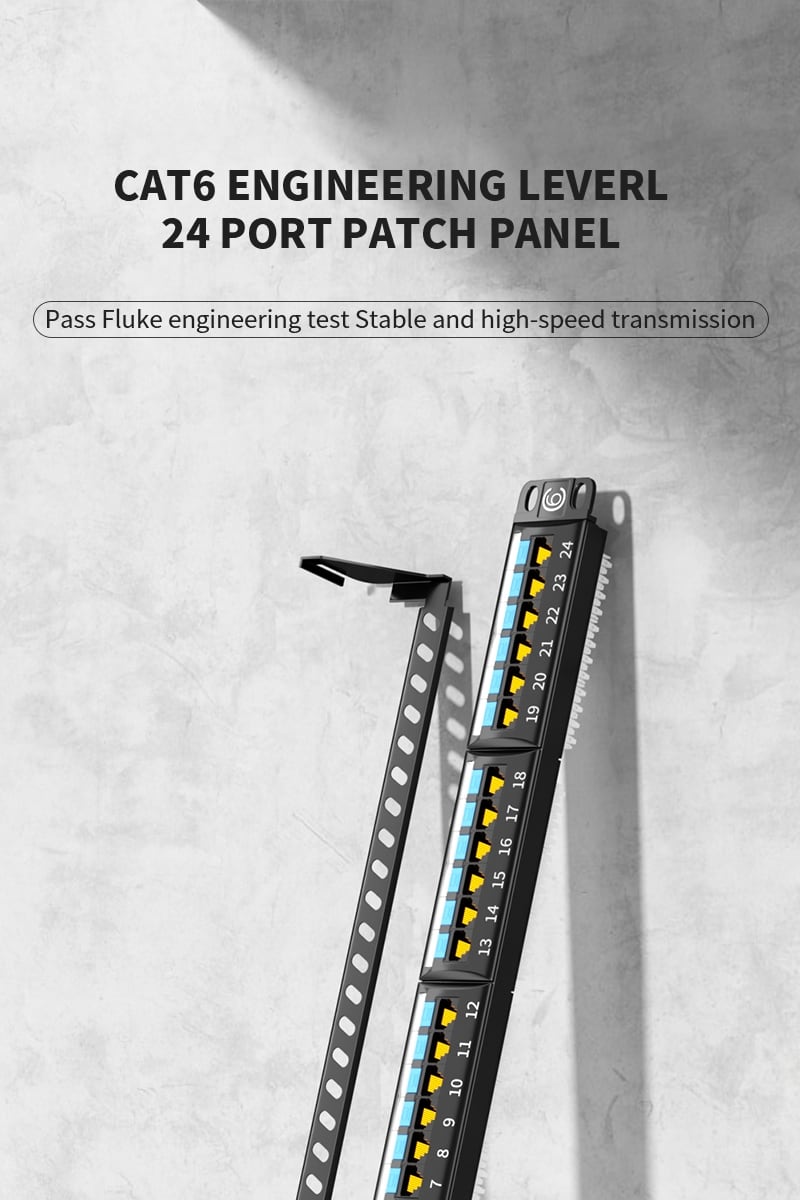

  3. High Port Density: The patch panel comes with a high port density, usually featuring 24 or 48 ports. This provides a large number of connection points in a relatively small space, making it ideal for use in data centers, office buildings, and other environments where multiple network connections are required. The ports are typically arranged in a neat and organized manner, facilitating easy cable management and identification.
  4. Low Insertion Loss and Crosstalk: It is designed to minimize insertion loss and crosstalk, ensuring that the signal quality remains high throughout the network. This is achieved through advanced engineering and the use of high-quality components, resulting in clear and stable data transmission with minimal errors and interference.

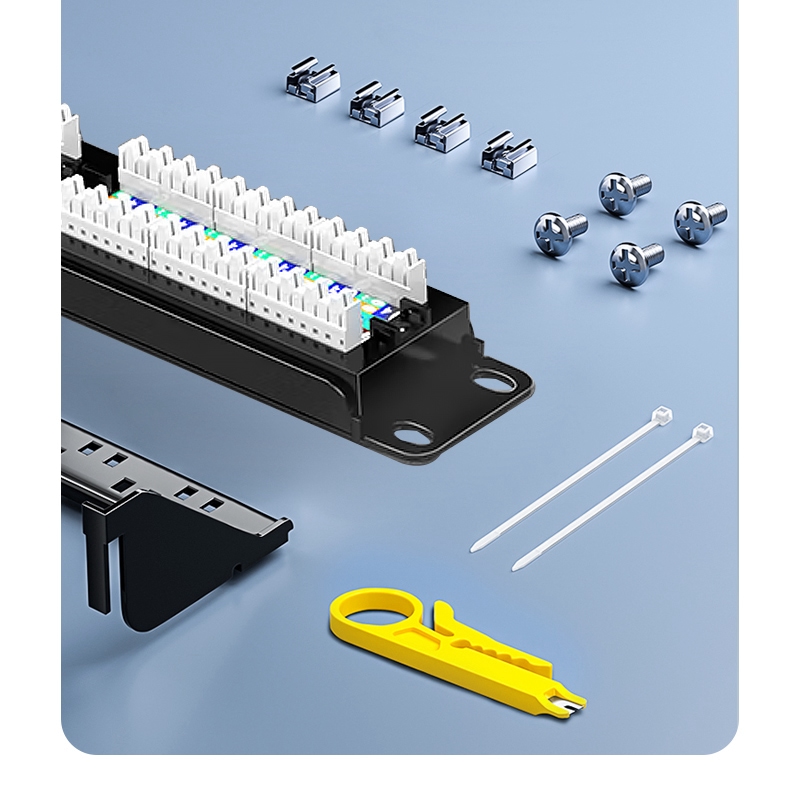

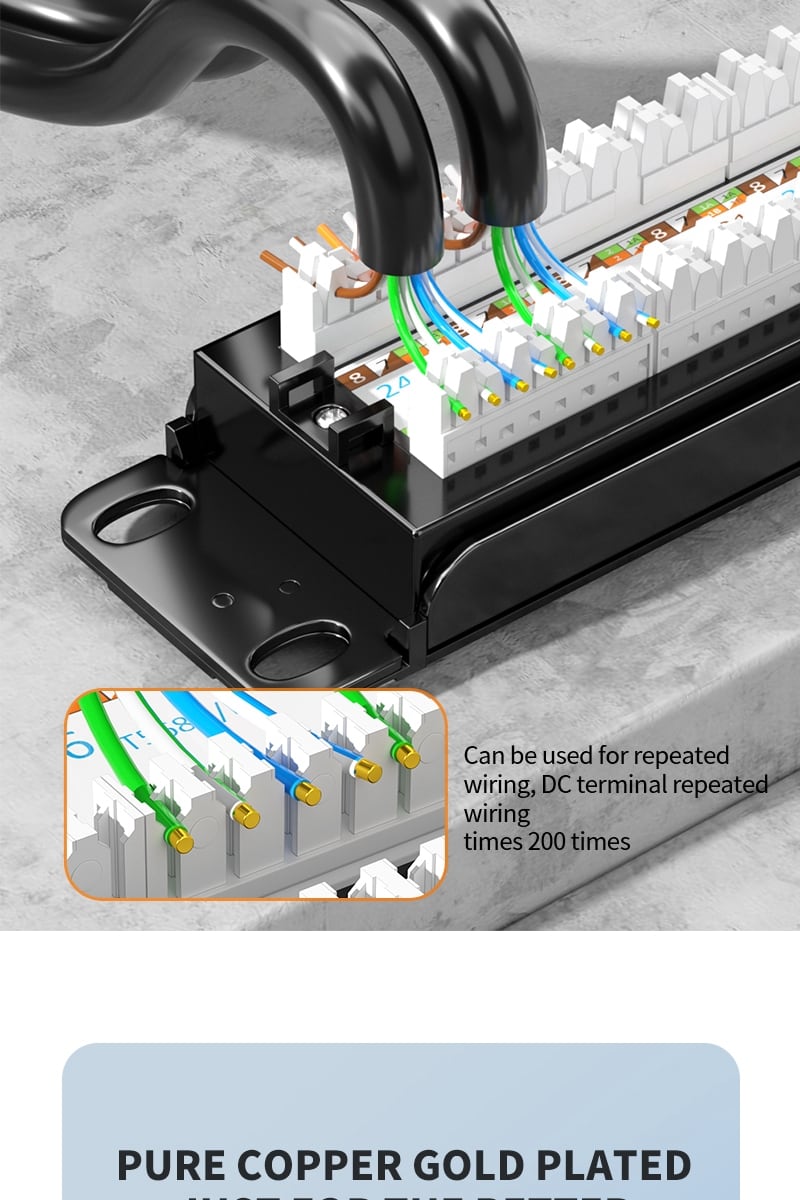

  5. Easy Installation and Maintenance: The patch panel is designed for easy installation. It usually features a standard 19-inch rack-mountable design, allowing it to be easily installed in a server rack or network cabinet. The cable termination process is straightforward, with clear markings and color-coded guides to assist in proper cable connection. Additionally, it facilitates easy maintenance and troubleshooting, as individual ports can be easily accessed and tested.

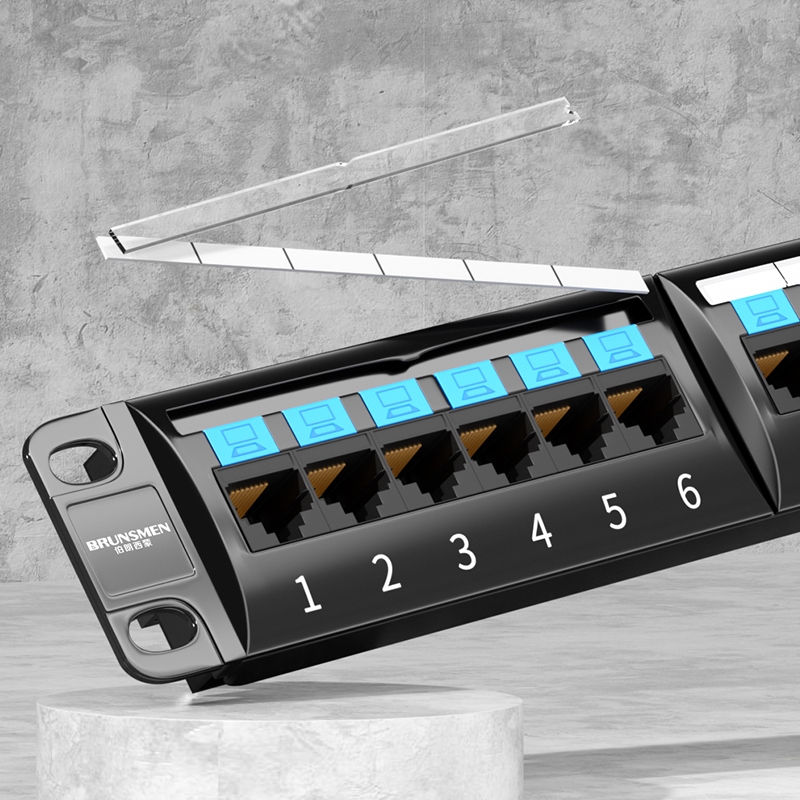

  6. Labeling and Identification: To enhance cable management and organization, the patch panel is equipped with labeling options. Each port is usually labeled, and there may be additional space for labeling the entire panel or sections of it. This makes it easy to identify and track network connections, simplifying network management and reducing the time required for troubleshooting and upgrades.

Applications

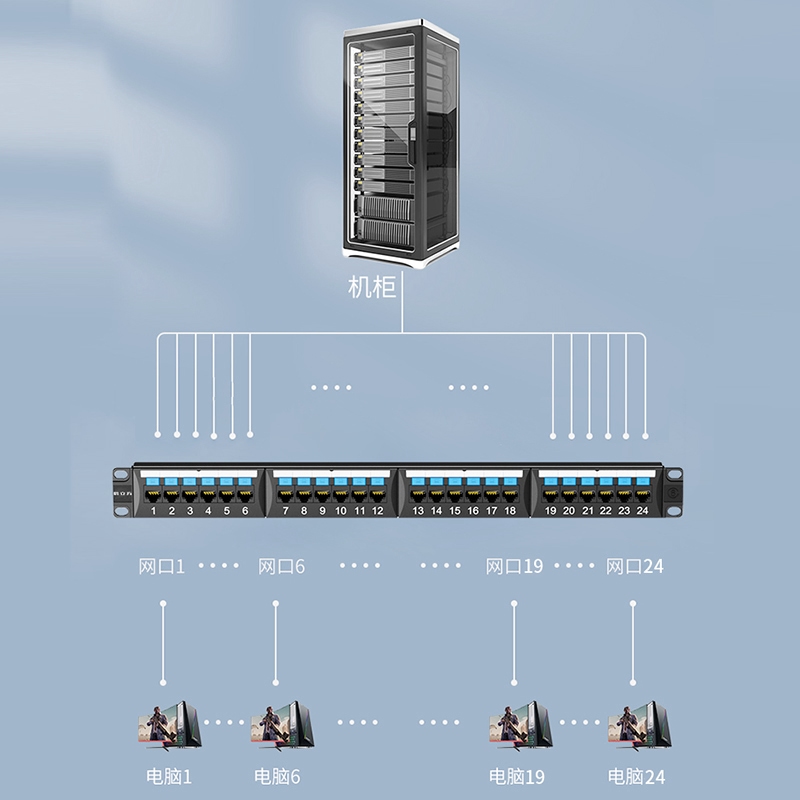

  1. Data Centers: In data centers, where a large number of servers and networking devices need to be connected, the Cat6 Engineering Grade Patch Panel plays a crucial role in organizing and managing the network infrastructure. It provides a centralized point for connecting and routing network cables, ensuring efficient data transfer and easy maintenance of the network.
  2. Office Buildings: In office environments, the patch panel is used to connect computers, printers, IP phones, and other network-enabled devices to the local area network (LAN). It allows for easy expansion and reconfiguration of the network as the needs of the office change, and helps to keep the network organized and reliable.
  3. Educational Institutions: Schools and universities use Cat6 patch panels to establish reliable network connections in classrooms, computer labs, and administrative offices. They enable students and staff to access educational resources, online learning platforms, and campus-wide networks with high speed and stability.
  4. Hospitals and Healthcare Facilities: In hospitals, the patch panel is essential for connecting medical devices, computers in patient rooms, and network systems in administrative areas. It ensures the smooth operation of critical healthcare applications, such as electronic medical record systems and telemedicine services, by providing a reliable and high-performance network infrastructure.
  5. Commercial Buildings: Shopping malls, hotels, and other commercial buildings rely on Cat6 patch panels to provide network connectivity for tenants, customers, and building management systems. It enables the deployment of Wi-Fi networks, point-of-sale systems, and other networked applications that are essential for the operation and success of these businesses.
